In PC-Convey, five forms of output are available: the "Overbank Results", the "Table of Results", which may both be viewed on screen or printed, "Output to File", "Enclosed Section Flow" and "Weir Flow".

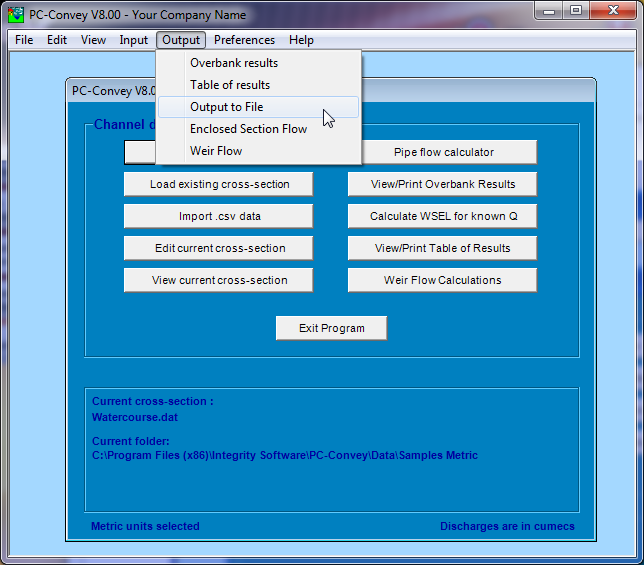

The Output to File option enables you to save the Overbank Results and the Table of Results output as text files that can be read into a spreadsheet program and manipulated as required to produce rating tables, graphs etc. As these files produce a significant amount of data, another file contains just the Water Surface Elevation and the Discharge, Average Velocity and Area for the total cross-section.

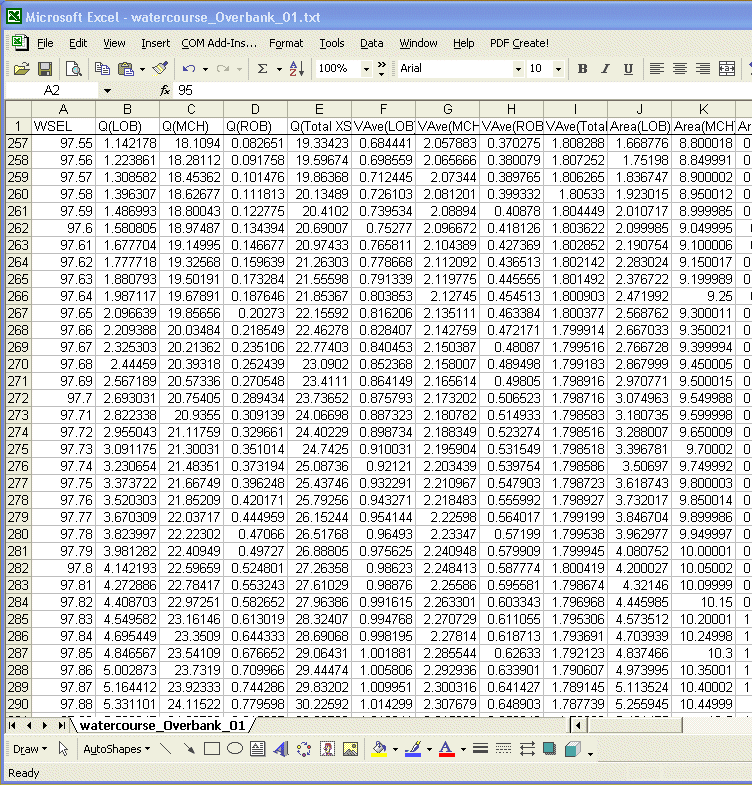

This screenshot shows a small portion of the Overbank Output file after it has been imported into Excel. For a list of all of the variables available, click here.

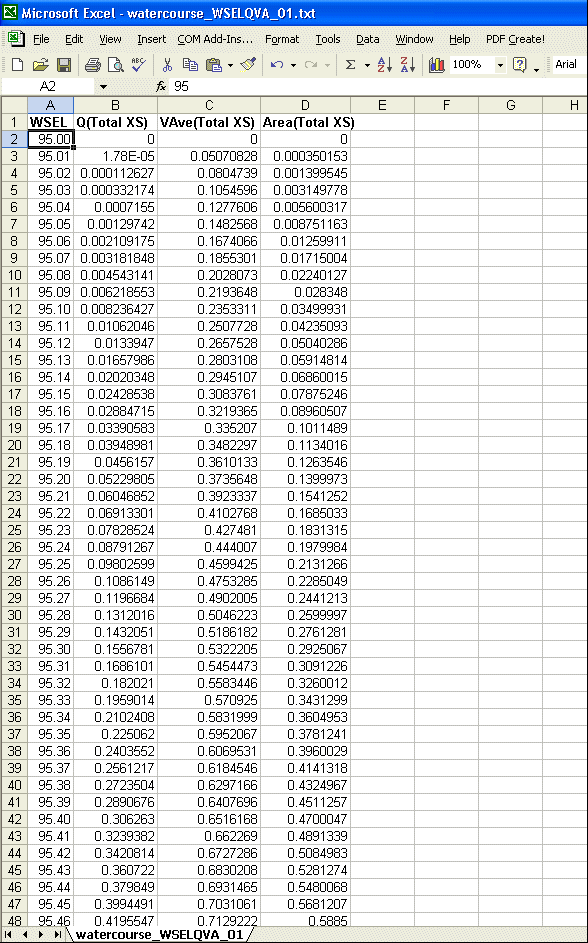

This screenshot shows the simplest form of the output (WSEL, Q, VAve, Area) imported into Excel:

The third file contains all of the Table of Results variables.
