Output - Enclosed Section flow
Products > PC- Convey > Guided Tour
In PC-Convey, five forms of output are available: the "Overbank Results", the "Table of Results", which may both be viewed on screen or printed, "Output to File", "Enclosed Section Flow" and "Weir Flow".

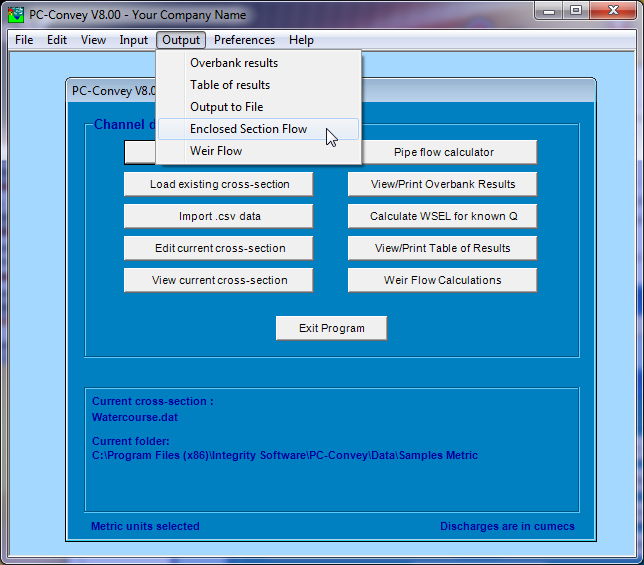

The Enclosed Section Flow option enables you to obtain results for your cross-section WITH A 'LID'.

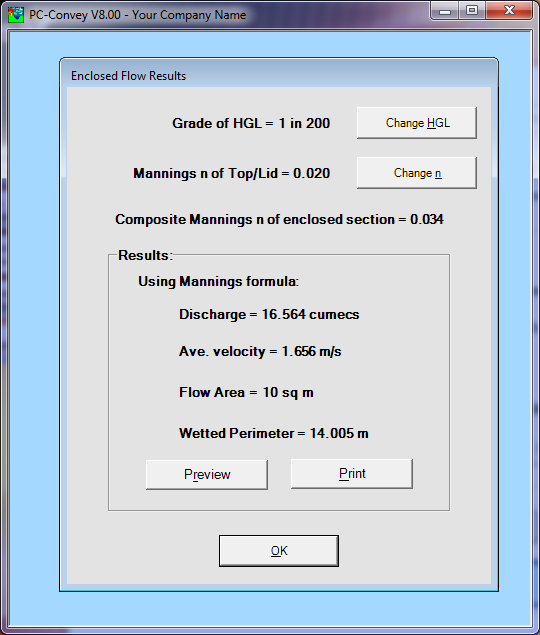

The output looks like this:
